LIFTING

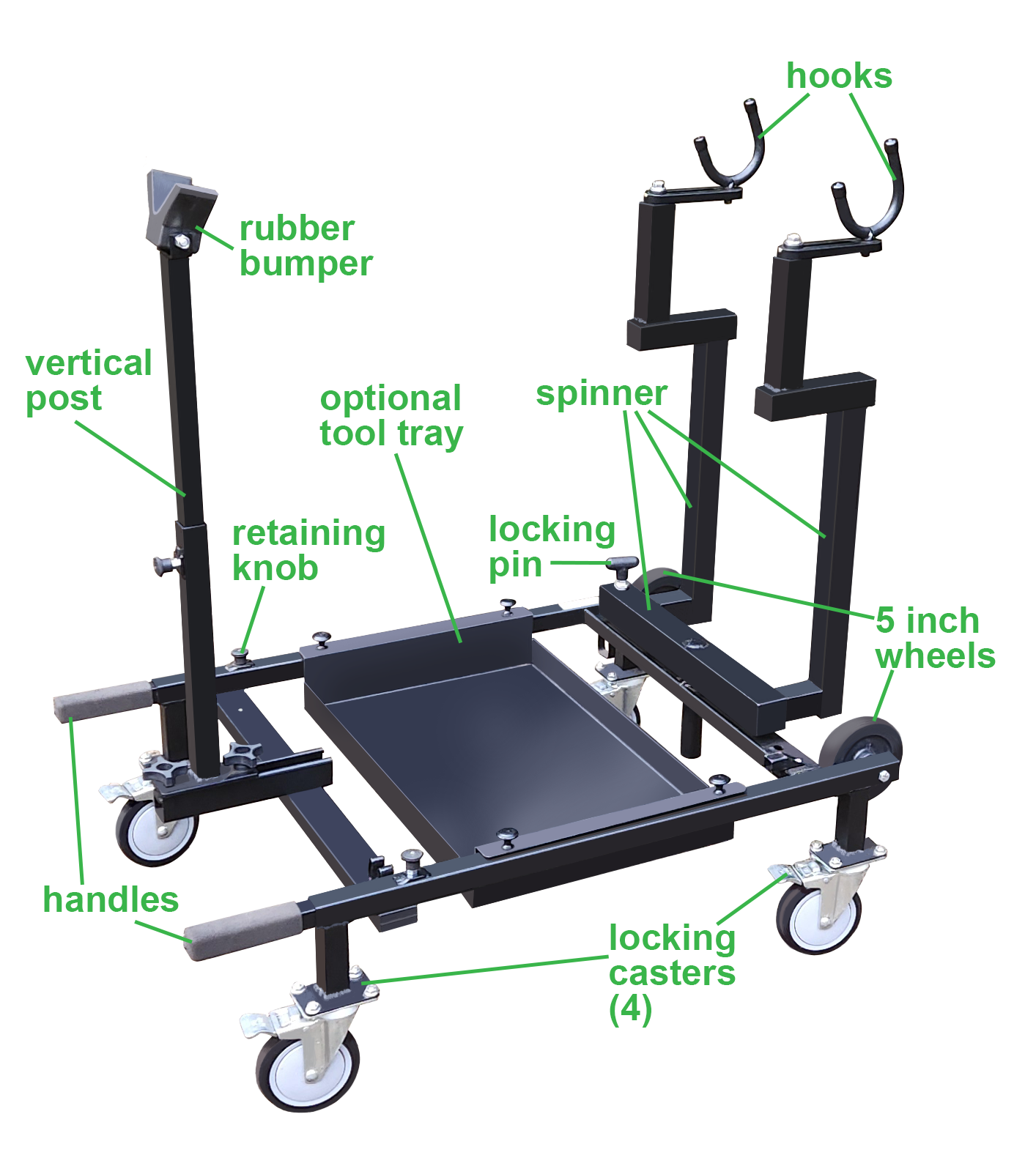

Preparing the StandTrike

1      Ensure the spinner locking pin engages a hole in the frame cross member preventing spinning

2      Ensure the single post with the rubber bumper is stored horizontally in the stand base

3      Ensure the casters are unlocked

4      Lock the rear wheel of the trike

5      Position the stand about 4 feet in front of the trike with the casters pointing away from the trike

6      Lock the two casters below the spinner.

7      Extend the handles by lifting the retaining knob and sliding out until the knob engages the second hole in the handles

Preparing to Raise the Trike

8      Raise the stand using the handles until the stand is stable and resting on the two locked casters and the two 3” wheels close by

9      Position the hooks so that the longer arm is closest to the ground

10   Position the crank arms parallel to the ground

11   Roll the stand assembly toward the trike until the spinner hooks engage the cross tube supporting the trike front wheels

12   Unlock the rear wheel of the trike

Raising the Trike

13   Pull down on the handles of the stand while the trike is lifted and all four casters are are in contact with the ground

14   Retract the handles by lifting the retaining knob and pushing them in until the knob engages the second hole in the handles

15   Remove the single post from its spring clip and insert into the fitting in the center of the stand’s cross member opposite the cross member supporting the spinner with the holes aligned with the pull pin

Spinning the Trike

16   Release the locking pin preventing the spinner from spinning

17   Lift the rear wheel of the trike and spin180 degrees while moving the trike up and down to avoid obstacles

18   Set the trike onto the rubber bumper atop the single post

19 Engage the locking pin into the stand frame preventing the spinner from spinning

20 Release the caster locks if desiring to roll around the assembly
